Inti LabsINTI LABS OPAL

OOCYTE QUALITY ANALYZER SERIES

Opal

Clarity and confidence.
For every oocyte.

Morphology and viscoelasticity.
Two perspectives on oocyte quality, from Inti Labs.

Watch Opal in action English brochure

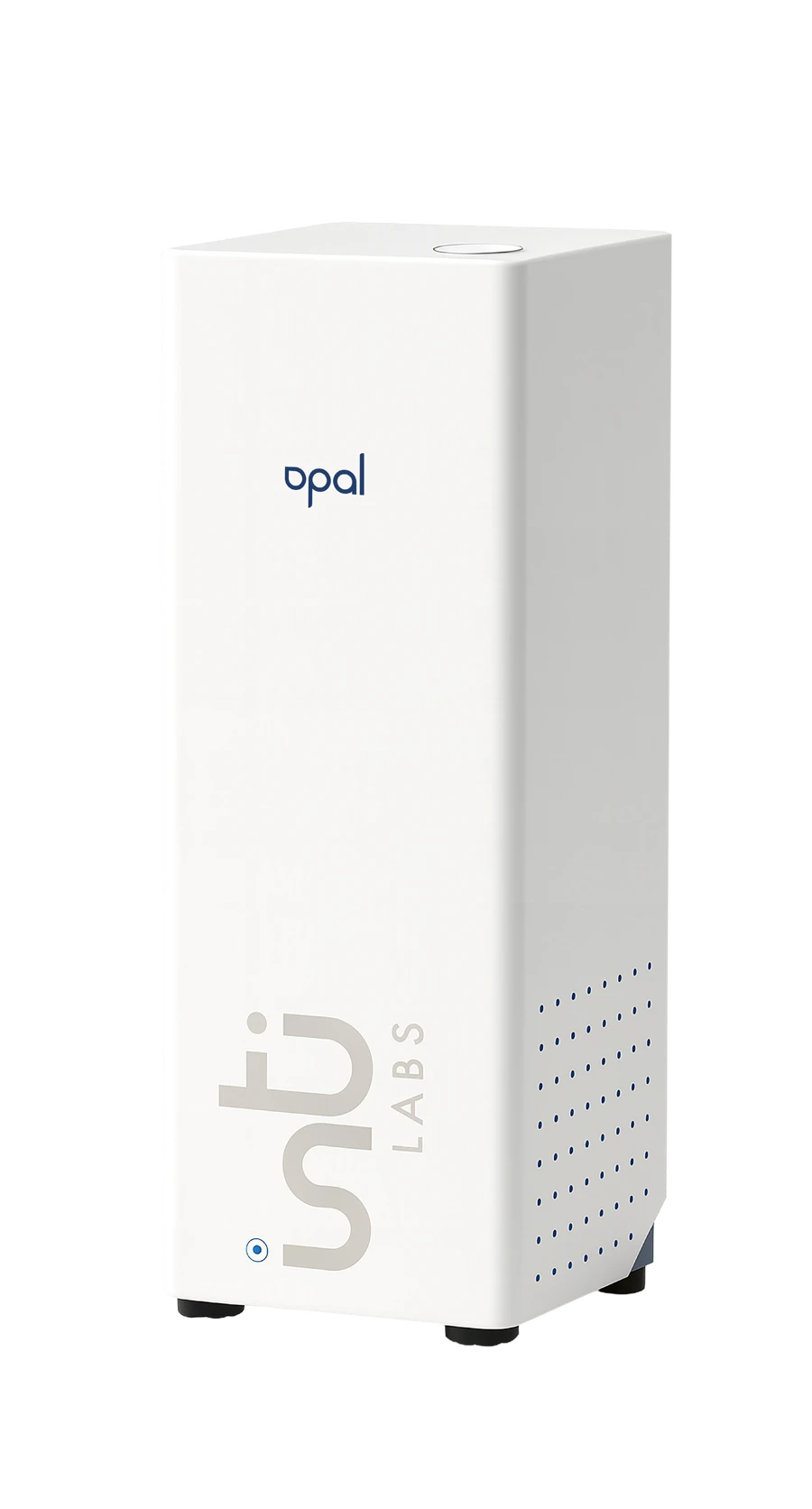

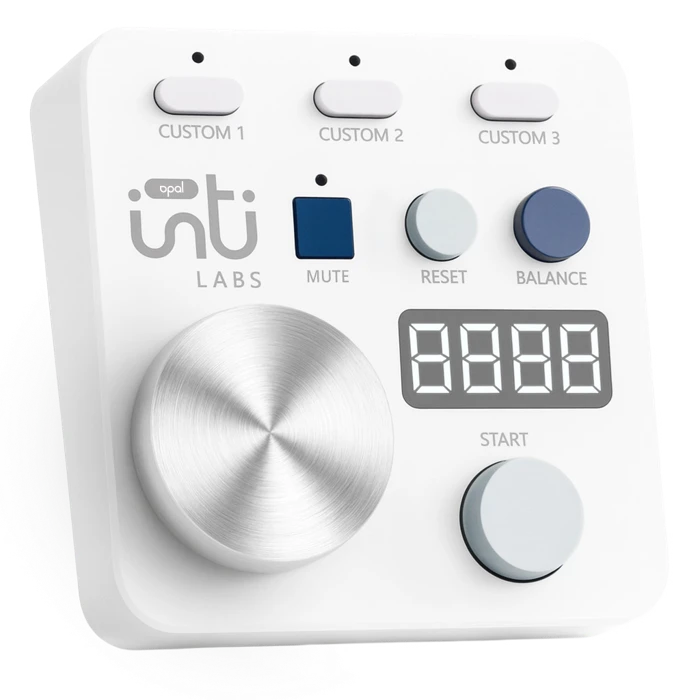

Opal main unitOpal controllerMAIN UNIT + CONTROLLER

01 / ABOUT OPAL

Beyond morphology.
A biomechanical perspective.

Opal measures oocyte viscoelasticity and analyzes it alongside morphology.

Using aspiration video and pressure data from a dedicated micropipette, Opal evaluates individual oocyte characteristics. Its software provides AI-based grading and tracks grading history and developmental outcomes.

Product information below is based on the October 2026 English brochure.

5–7sec

Aspiration and analysis per oocyte

As stated in the manufacturer’s brochure
ICSI

Designed for integration between retrieval and sperm injection

02 / HOW IT WORKS

From aspiration to evaluation.

Video and pressure data reveal mechanical and morphological characteristics.

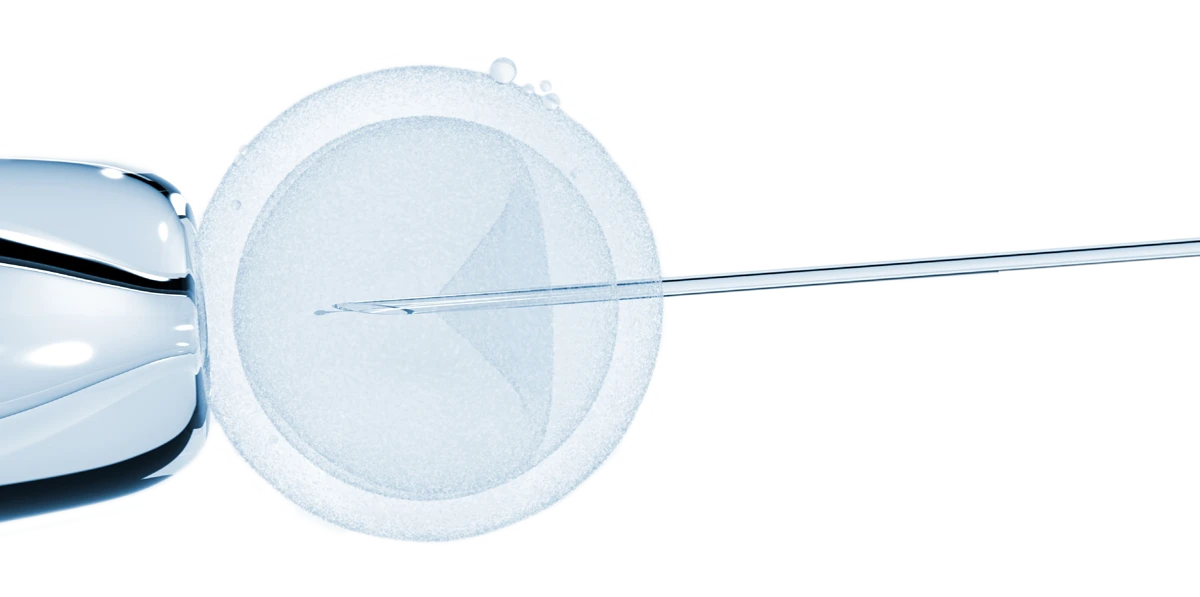

Illustration of oocyte measurement with a micropipette
Measurement with the dedicated micropipette
  1. 01

    Position

    Align the dedicated micropipette with the oocyte under a microscope.

  2. 02

    Aspirate

    Apply gentle suction and record the aspiration video and pressure.

  3. 03

    Analyze

    Extract mechanical and morphological features from the recorded video and pressure data.

  4. 04

    Grade

    The predictive model evaluates these features and assigns a grade to each oocyte.

03 / RESULTS & APPLICATIONS

From assessment to informed decisions.

Grades A, B and C indicate each oocyte’s potential to develop into a blastocyst.

  • Grade A

    Higher developmental potential

  • Grade B

    Intermediate developmental potential

  • Grade C

    Lower developmental potential than A or B

ASSESSMENT REPORT

A visual report supports explanation and recordkeeping. Clinicians interpret it alongside other clinical information.

APPLICATION 01

Egg freezing

Record grading before freezing to support planning and discussions.

  1. 01Retrieval
  2. 02Opal assessment
  3. 03Freezing

APPLICATION 02

IVF & ICSI

Assess fresh or thawed oocytes before sperm injection.

  1. 01Retrieval / thawing
  2. 02Opal assessment
  3. 03ICSI

Source for grading and applications: Inti Labs product information (English)

04 / MOVIES

See Opal in action.

Explore the product and watch the aspiration process.

MOVIE 0101:41

Product film

Take a closer look at the Opal system.

Open video in a new tab
MOVIE 0200:05

Oocyte aspiration

Watch oocyte aspiration using a micropipette.

Open video in a new tab

05 / SPECIFICATIONS

Specifications

Opal™ / Inti Labs

Specifications from the October 2026 English brochure

Opal specifications
Main unit90 × 90 × 250 mm (±5 mm) / 2.0 kg (±5%)
Controller95 × 88 × 46 mm (±5 mm) / 0.4 kg (±5%)
Controller connection15-pin DB15 (D-sub) port × 1
Tube connectionφ2 mm
Power inputAC 100–240 V, 50/60 Hz
Power output24 V, 2.5 A, max. 60 W
Opal English brochure cover

06 / BROCHURE & CONTACT

Discover more about Opal.

The English brochure covers features, applications, references and specifications.

View English brochure Download PDF

English / 7 pages / PDF approx. 6.8 MB / October 2026 version

Talk to us about Opal

Contact Medi-Con for product details and enquiries about introducing Opal.

Enquire about Opal

Opal™ is a trademark of Inti Labs.
